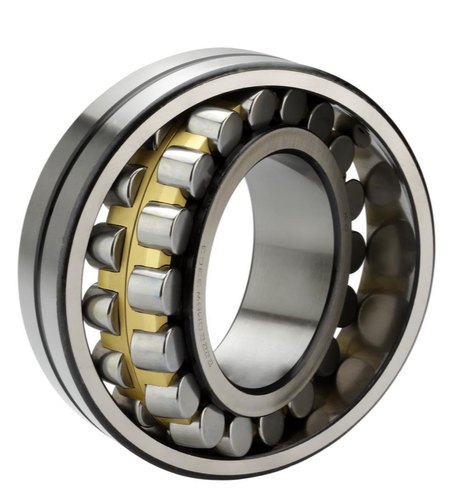

22215-E1-K-C3 Spherical Roller Bearing

Description

The 22215-E1-K-C3 is a high-performance spherical roller bearing engineered for applications involving heavy loads and potential shaft misalignments.​

🔧 Key Specifications

• Bore Diameter (d): 75 mm​

• Outer Diameter (D): 130 mm​

• Width (B): 31 mm​

• Bore Type: Tapered (1:12)​

• Internal Clearance: C3 (greater than normal)​

• Cage Material: Steel​

• Closure Type: Open​

• Dynamic Load Rating (Cr): 216,000 N​

• Static Load Rating (C0r): 237,000 N​

• Limiting Speed: 6,500 rpm​

• Operating Temperature Range: -30°C to +200°C​

• Weight: Approximately 1.55 kg​

⚙️ Features & Applications

• Self-aligning design accommodates shaft misalignments up to 2°​

• High load capacity suitable for demanding applications​

• Commonly used in: vibratory machinery, mining equipment, and heavy-duty industrial applications​
